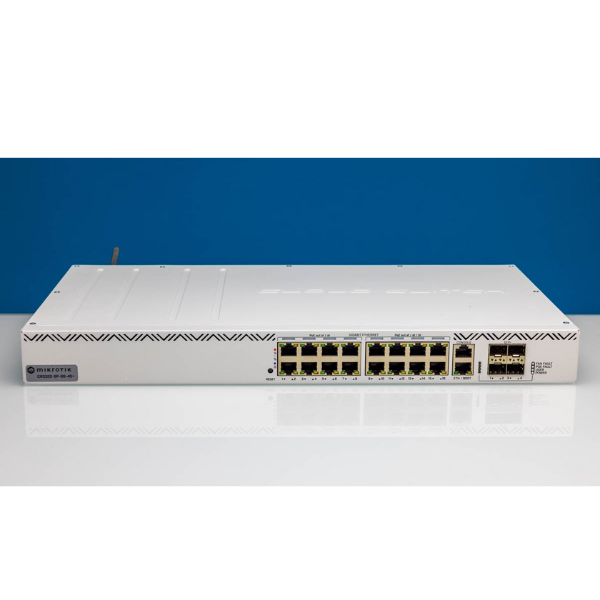

MikroTik CRS320-8P-8B-4S+RM PoE++ Switch
- Product code: CRS320-8P-8B-4S+RM
- Architecture: ARM 32-bit
- CPU: 2 core 98DX226S
- Switch chip model: 98DX226S
- RouterOS license: 5
- Operating System: RouterOS v7 / SwitchOS
- Size of RAM: 256 MB
- Storage size: 32 MB
- Storage type: FLASH
- MTBF: Approximately 200’000 hours at 25C
- Tested ambient temperature: -10°C to 50°C

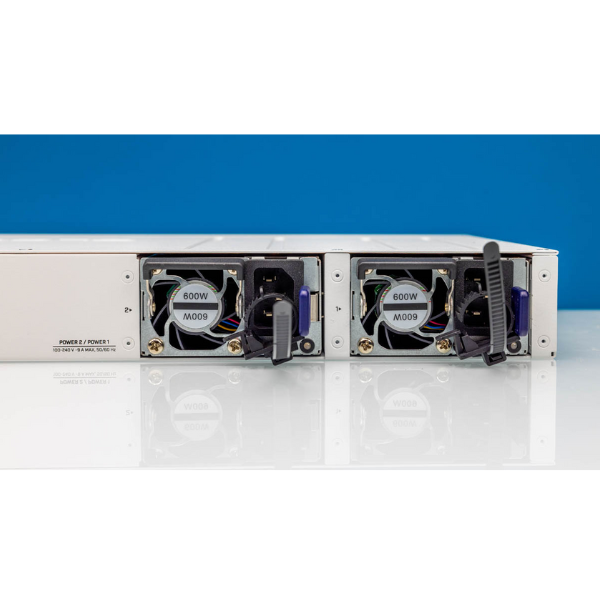

- Max power consumption: 600W (1150W with additional PSU)
- Max power consumption without attachments: 36 W

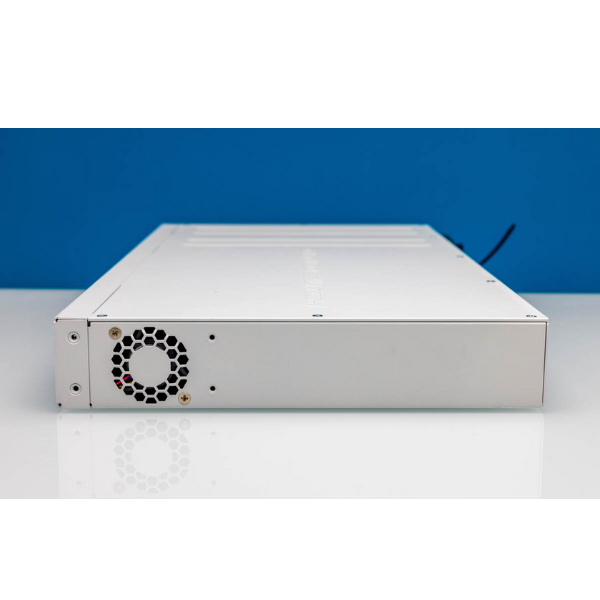

- Cooling type: 3 fans
- PoE-out ports: Ether1-Ether8 (af/at), Ether9-Ether16 (bt)
- PoE out: 802.3af/at/bt
- 10/100/1000 Ethernet ports: 17
- Number of 1G Ethernet ports with PoE-out: 16
Original price was: KSh 73,000.00.KSh 72,000.00Current price is: KSh 72,000.00.
Description
The MikroTik Cloud Router Switch CRS320-8P-8B-4S+RM is a rack-mounted device that combines a powerful switch, a router, and a Power over Ethernet (PoE) provider. It’s built for creating fast, efficient networks in offices, data centers, or as an internet gateway.
| Category | Specification | Details |
| General Information | ||
| Product Model | CRS320-8P-8B-4S+RM | |
| Brand | MikroTik | |
| Condition | 100% Original Brand New | |
| Switch Type | Gigabit Ethernet Switch / Router | |
| Architecture | ARM 32bit | |
| Operating System | RouterOS v7 (License Level 5) | |
| Ports & Interfaces | ||
| Total Physical Ports | 20 | |
| SFP28 Ports | 4 ports, supporting 25 Gbps / 10 Gbps | |
| SFP+ Ports | 8 ports, supporting 10 Gbps | |
| RJ45 Ethernet Ports | 8 ports, 10/100/1000 Mbps | |
| PoE Ports | All 8 RJ45 ports support 802.3af/at (PoE+) | |
| Combo Ports | The 8x RJ45 and 8x SFP+ ports are paired; only one port per pair can be used at a time. | |
| Transmission Rate | 10/100/1000 Mbps (RJ45), 10 Gbps (SFP+), 25/10 Gbps (SFP28) | |
| Communication Mode | Full-Duplex & Half-Duplex | |
| Hardware | ||
| CPU | Marvell 98DX226S | |
| CPU Core Count | 2 | |
| CPU Nominal Frequency | 800 MHz | |
| RAM | 256 MB DDR3 | |
| Storage Type | 16 MB FLASH | |
| Performance & Features | ||
| Switching Capacity | 208 Gbps | |
| Total PoE Budget | 150 Watts | |
| Key Functions | LACP, PoE, QoS, SNMP, Stackable, VLAN Support, IPv4/IPv6 static routing, OSPF, BGP, HW Offloading | |
| Physical & Other | ||
| Mounting | 1U Rackmount (RM) | |
| Power Supply | Built-in, 100-240V AC | |
| Has External Power Supply | No (Built-in) | |
| Private Mold | No | |
| Products Status | Stock |
Key Features Explained
- High-Speed Connectivity: The four SFP28 ports (25 Gbps) make this switch ideal for aggregating traffic from multiple 10 Gbps SFP+ links or for connecting to a high-speed core network.
- Power over Ethernet (PoE): It can power devices like wireless access points, IP cameras, and VoIP phones directly through the network cables, simplifying installation.
- Combo Ports: The 8x RJ45 and 8x SFP+ ports are grouped as “combo ports.” You can use either the RJ45 or the SFP+ port in each pair, but not both at the same time. This provides flexibility in cable choice (copper or fiber) without wasting ports.
- RouterOS: This powerful operating system allows the device to function as both a simple switch and a full-featured router, giving you extensive control over your network.
Typical Use Cases
- Office Network Core: Connecting multiple switches and providing high-speed access to servers.
- Video Surveillance: Powering PoE cameras and handling high-bandwidth video streams.
- Wireless Infrastructure: Powering high-end Wi-Fi access points and backhauling their traffic at 10 Gbps.
- Small Data Center / Server Aggregation: Connecting servers with 10G/25G network cards.
