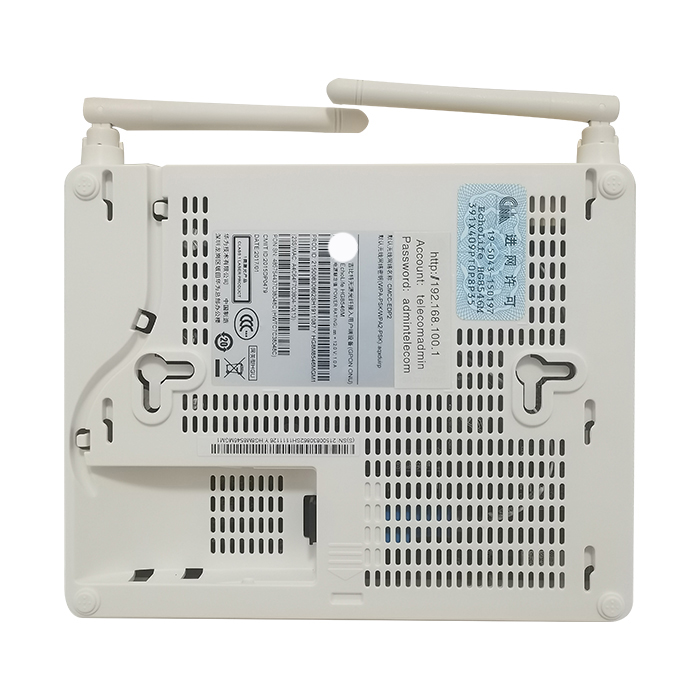

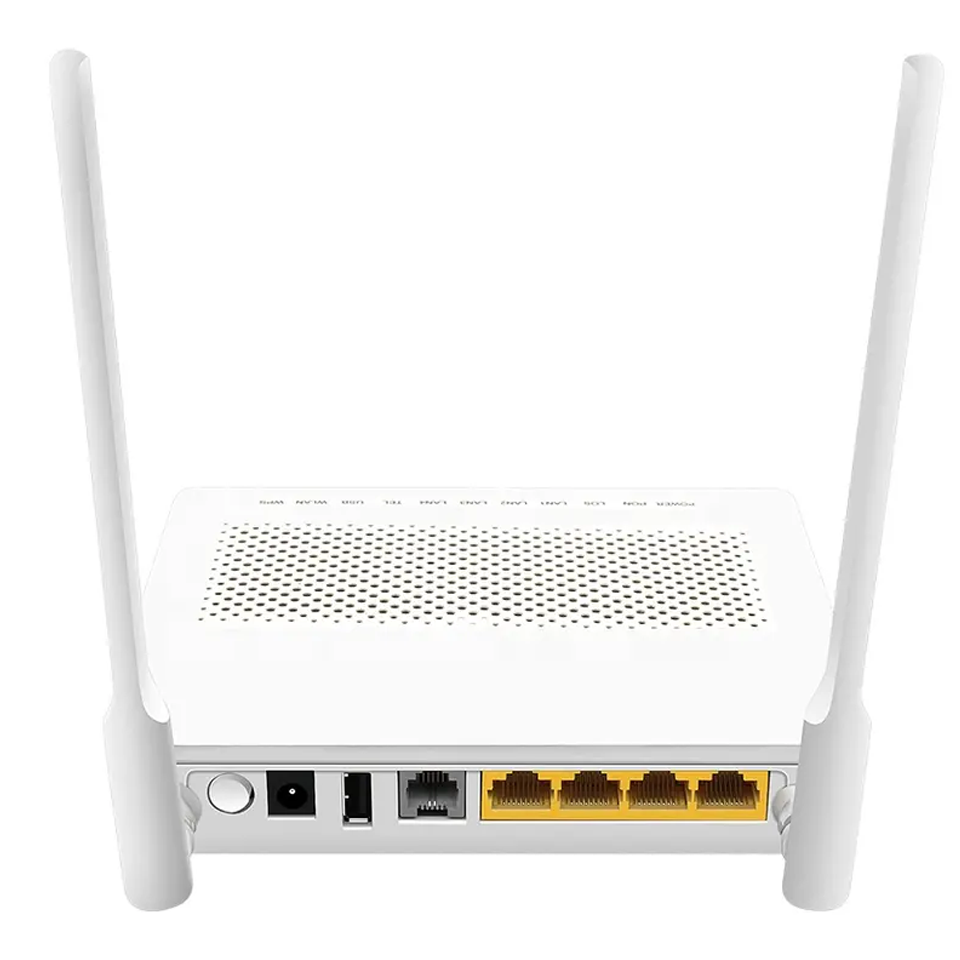

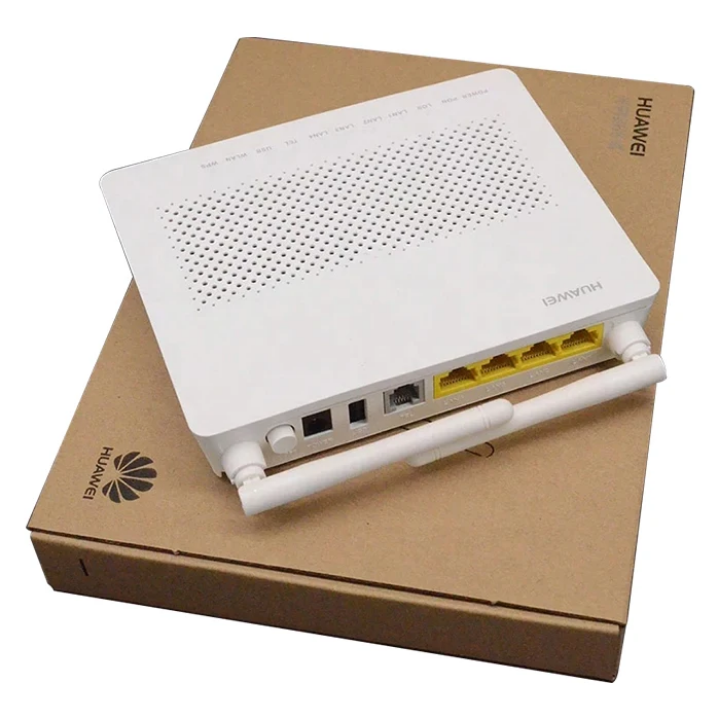

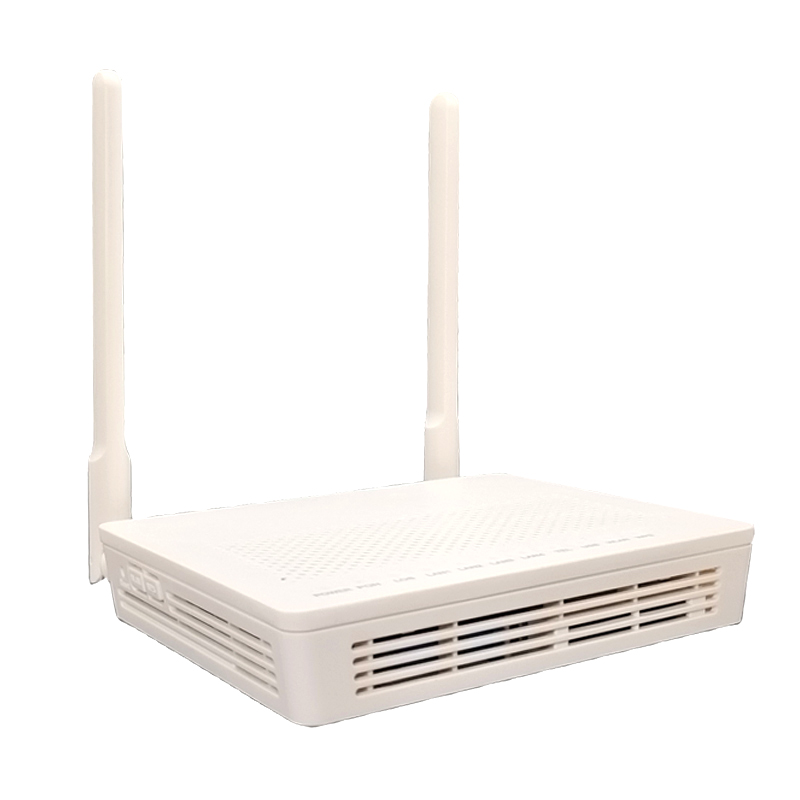

Original Huawei EchoLife HG8546M XPON ONU WIFI Router

Huawei EchoLife HG8546M is a routing ONT in Huawei’s all-optical access solution, it supports 1*GE+ 3*FE+ 1*POT+ 1*USB+ 2.4GHz Wi-Fi. (1*GE Ethernet port, 3*FE Ethernet ports, 1*POTS voice port, 1*USB port, and 2.4GHz Band Wi–Fi). Huawei HG8546M can handle both GPON and EPON applications (XPON ONU)

  • Technology: GPON ONT
  • Category: High-end Home Gateway
  • Application: FTTH/FTTB/FTTO
  • Uplink Speed: 1.25 Gbps
  • Downlink Speed: 2.5 Gbps
  • Management: Standard OMCI support
  • Service Types: Pure Data, Data + Voice, Data + Voice + WiFi
  • Technology: GPON fiber access

KSh 1,700.00

Category: Brand:

Description

Huawei HG8546M FTTH Product Specification

BrandHuawei
ModelHG8546M
Power supply12V,1.5A
Power consumption (full loaded)≤15W
Outline dimensions (mm) (W*D*H)240*160*35mm
Weight (in maximum configuration)≤0.5kg
WIFIAntenna 2×2, 2dBi external antenna
VoIPREN Max 5REN
Connector 1x RJ11
Ringing 65V RMS ringing voltage
USBMax 1A for each port
Environmental requirementsWorking temperature：0ºC~50ºC
Storage temperature：-40ºC~70ºC
Working humidity：5%~90% Storage temperature：5%~95% no condensing
EthernetStandard;IEEE802.3 IEEE802.3au IEEE802.3x
Interface;1x 10/100/1000BASE-T+ 3x 10/100Base-T RJ45

Auto negotiation

Auto MDI/MDIX
