Ugreen DXP480T Plus 4 Bay All Flash SSD NAS

Bay Configuration: 4 x hot-swappable bays
Supported Drives: M.2 NVMe PCIe 4.0 SSDs (2280 form factor)
Interface & Ports: 2 x Thunderbolt 4 (40 Gbps, PD 15W), 2 x 10GbE SFP+ (10 Gigabit Ethernet), 1 x 10GBase-T RJ45 (10 Gigabit Ethernet), 1 x USB-C 3.2 Gen 2 (10 Gbps), 2 x USB-A 3.2 Gen 2 (10 Gbps)
Processor (CPU): Intel Core i5-1235U (10 cores, 12 threads) with integrated Intel Iris Xe graphics
Memory (RAM) 32 GB DDR4 (soldered, not user-upgradable)
Operating System: UGOS (Ugreen OS) – A Linux-based system with a web GUI and mobile app. Supports Docker, VMs, and numerous first-party services.
Cooling: Active cooling system with dual fans and heatsinks for sustained performance.
Power Supply: 120W external power adapter
Dimensions: 232.6 x 142 x 179 mm (9.16 x 5.59 x 7.05 in)
Weight: ~4.2 kg (9.26 lbs) without drives

Original price was: KSh 78,000.00.Current price is: KSh 75,000.00.

Category: Brand:

Description






Ugreen DXP480T Plus Specifications


Ugreen DXP480T Plus

4-Bay All-Flash SSD NAS Specifications

The DXP480T Plus is positioned as a premium, Thunderbolt 4-enabled NAS solution, emphasizing blistering transfer speeds ideal for 4K/8K video editing, large-scale data processing, and running virtual machines directly from the network.

Detailed Breakdown of Specifications

Performance & Hardware

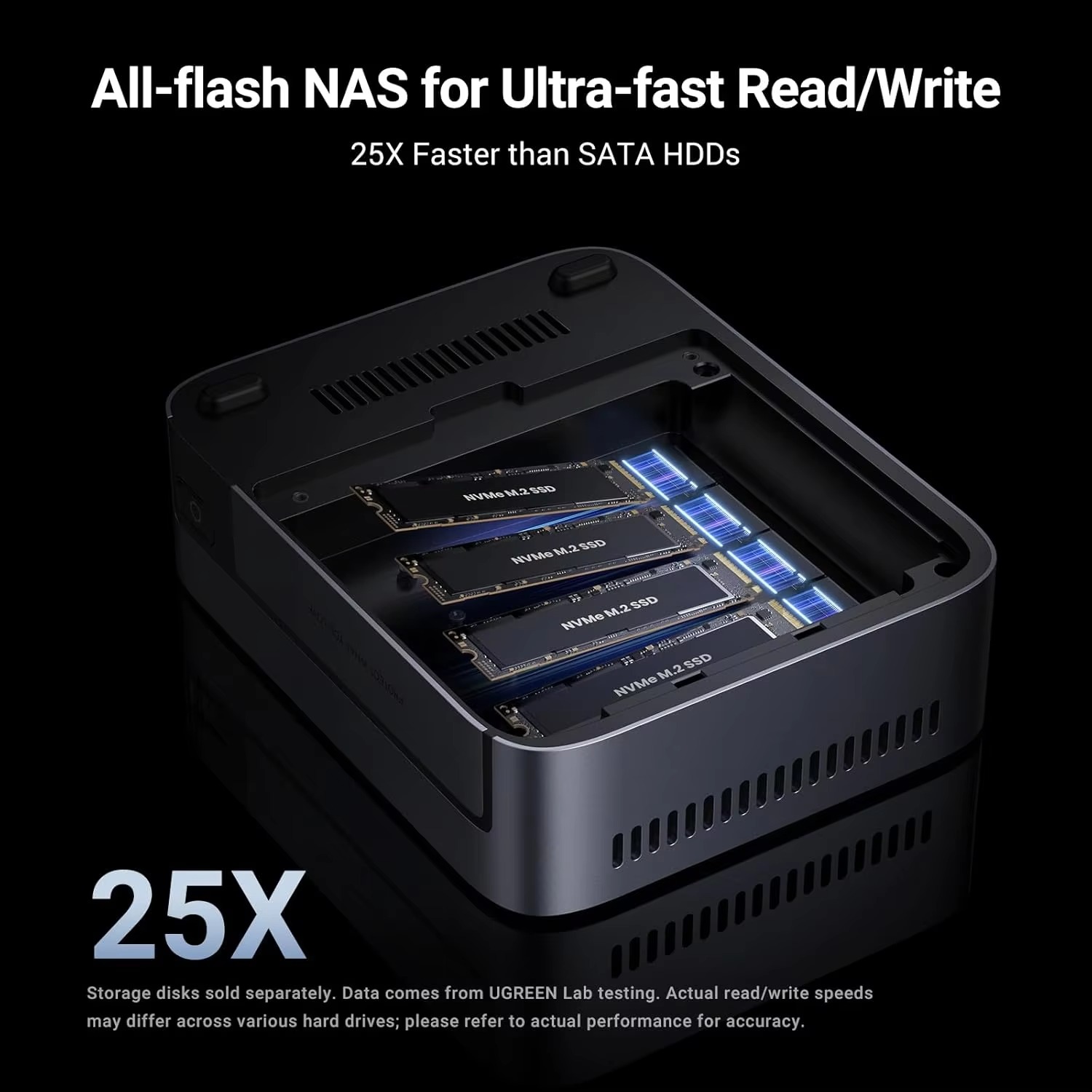

All-Flash Design
The use of four M.2 NVMe PCIe 4.0 SSDs in a RAID configuration (RAID 0, 1, 5, 6, 10) enables unprecedented read/write speeds, potentially exceeding 2,800 MB/s over 10GbE and saturating the Thunderbolt 4 connection for near-internal SSD performance.

Powerful Processor
The Intel Core i5-1235U is a laptop-grade CPU with 2 Performance cores and 8 Efficiency cores (12 total threads). This provides ample power for running multiple Docker containers, virtual machines, and real-time encryption/decryption without becoming a bottleneck.

Ample Memory
The 32 GB of soldered DDR4 RAM is sufficient for heavy multitasking, serving as a large read/write cache (ZFS L2ARC or similar), and hosting memory-intensive applications. The fact that it’s soldered is a limitation for future upgrades but is generous for most use cases out of the box.

Connectivity (A Major Highlight)

Thunderbolt 4 (x2)
This is the standout feature. It allows for:
  • Ultra-Fast Direct Connection: Connect directly to a Mac or PC for DAS-like speeds (~40 Gbps), perfect for video editors working with high-bitrate footage.
  • Daisy-Chaining: Connect up to 5 other Thunderbolt devices (e.g., displays, docks) through the NAS.
  • Power Delivery: Can provide 15W of power to a connected laptop.

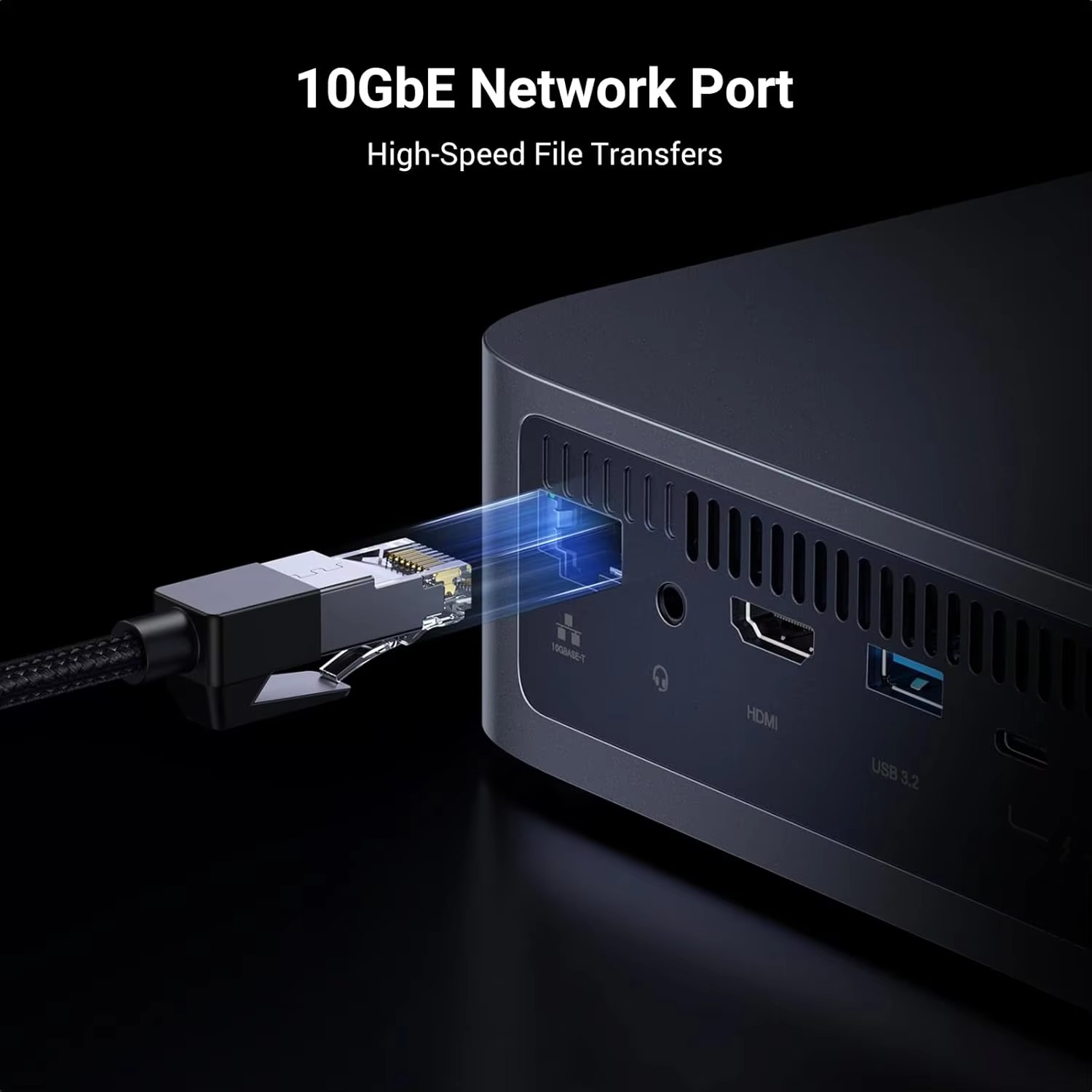

Dual 10GbE SFP+ & 10GBase-T RJ45
Offers extreme flexibility for network integration. You can use fiber (SFP+) or copper (RJ45) cables to connect to a 10GbE switch, providing massive bandwidth for multiple users accessing the NAS simultaneously.

High-Speed USB Ports
The USB-C and USB-A ports (10 Gbps) are useful for connecting expansion enclosures or for fast external backups.

Software & OS (UGOS)

The DXP480T Plus runs Ugreen’s proprietary UGOS. Key software features include:
  • Docker Support: Full containerization support for self-hosting thousands of third-party applications (e.g., Plex, *arr suites, Home Assistant, web servers).
  • Virtual Machine Manager: Create and run full VMs directly on the NAS.
  • Comprehensive Data Protection: Supports Btrfs file system with snapshot technology for point-in-time recovery and protection against ransomware.
  • Multi-Protocol File Sharing: Supports SMB/AFP for macOS/Windows, FTP, and WebDAV.
  • Ugreen Cloud Solution: Offers remote access functionality outside your local network.
  • Mobile App: The “Ugreen NAS” app allows for basic management and file access from iOS and Android devices.

Target Audience

This NAS is not for beginners or users on a budget. It is specifically designed for:
  • Video Professionals & Creative Studios: Editing 4K/8K video directly from the NAS over Thunderbolt.
  • Power Users & IT Enthusiasts: Who need an extremely fast home lab for virtualization and running numerous services.
  • Small Businesses: With high-performance data workflow requirements, such as software development or data analysis.

Important Considerations

Price
This is a premium product with a price point to match, significantly higher than traditional HDD-based NAS devices.

Drive Cost
NVMe SSDs are more expensive per TB than HDDs. Populating all four bays with high-capacity SSDs is a considerable additional investment.

Non-Upgradable RAM
The 32GB is generous but fixed. Users who anticipate needing more must consider this upfront.

New OS (UGOS)
While feature-rich, UGOS is newer and may have a smaller community and less third-party support compared to established systems like Synology’s DSM or QNAP’s QTS.

In summary, the Ugreen DXP480T Plus is a cutting-edge, performance-focused all-flash NAS that competes directly with high-end offerings from QNAP and Synology, distinguishing itself with a robust set of ports, including dual Thunderbolt 4.
